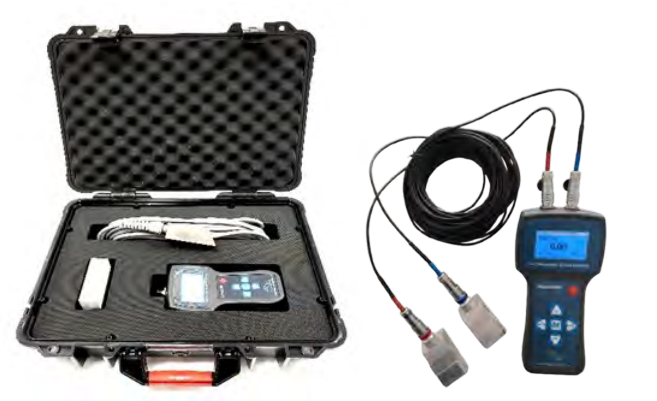

The Alpha3600 is a portable ultrasonic Transit-Time Flowmeter consisting of a handheld transmitter,
a pair of transmitting and receiving sensors, mounting hardware and a carrying case.
The transmitter combines digital signal processing (DSP) with correlation detection methods to analyze, separate, and reject noise frequencies.
The Alpha 3600 is configurable as a single channel with clamp-on transducers to accommodate small, standard and large sizes of pipes.
-
■ Easy to set up in minutes.
■ The non-intrusive clamp-on transducer can be installed without flow
■ interruption to ensure leak free measurements with zero pressure drop.
■ Stable readings are assured with a design immune to vibrations and temperature changes.
■ Unique ultrasonic sensors & circuitry based on the proven transit-time technique.
■ Typical field performance : ±0.2% for repeatability and up to ±0.5% accuracy of velocity depending on fluid conditions.TYPICAL APPLICATIONS
■ Clean and dirty fluids like water, waste water, sea water, river water, ranging from distilled products to multi-phase crude oil and water mixtures.
Difficult applications include oil production, cryogenic and custody transfer.
-
Selection Guide
