GENERAL DISPLAY & CONTROLLER
-
GDC-LP (General Displayer & Controller) loop-powered terminals are designed for continuous measurements with Electro-Chemical analog sensors for measurements of water analysis in a general purpose industrial or municipal environment.

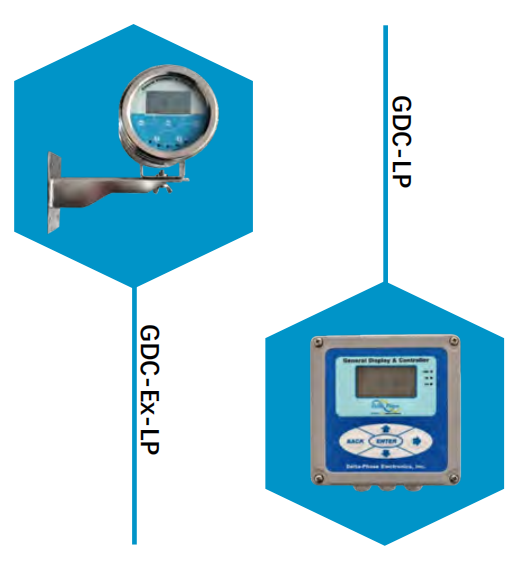

The GDC-LP transmitter usually can measure 4 parameters: pH, ORP, specific ion and conductivity, seamlessly compatible with Delta-Phase’s electro-chemical analog sensors like PH7A, RX7A, MV7A and CS7A. Standard GDC-LP transmitters use ½ DIN NEMA 4X polycarbonate enclosure which is designed for harsh industrial environments.
The GDC-Ex-LP, explosion proof transmitters use NEMA 7 Stainless-Steel enclosure and a magnetic screwdriver for non-contact setup through the display window of the SS enclosure, eliminating the need to open the enclosure cover.
-
ADVANTAGE
Universal Terminals:
Use with process variables such as pH, ORP, Specific Ions and Conductivity.Advanced Display:
Low power consumption backlit LCD.SIMPLE MANUAL:
Quickly setup with flexible configurations for all applicationsINDUSTRIAL STANDARD OUTPUT:
Loop-powered by 24VDC, with 4-20 mA analog output plus Hart.SIMPLE INSTALLATION:
Compact size, panel and handrail mounting for rapid installation in a variety of positions and applicationsADAPTING TO HARSH AND HAZARDOUS LOCATION:
Rugged 1/2 DIN NEMA 4X polycarbonate enclosure for standard version and NEMA 7 Stainless steel enclosure for Explosion-proof version (Ex d IIC T6 Gb)
-
Selection Guide
Please refer to the PDF Literature
